Step-Down DC/DC Converter

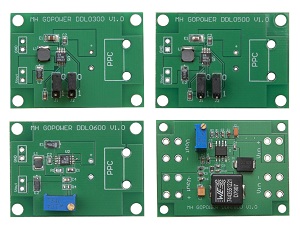

DD Series Step-Down DC/DC Converter

MH GoPower (“MHGP”) provides high efficiency step-down DC/DC converter modules which is capable of supplying up to 5A of load current. With 2.7V to 42V wide operating range, users can set output voltage up to 41V by pin selection. DD Series also incorporates undervoltage lockout (UVLO) safety feature to disable the converter and maintains a low quiescent current state when the input voltage falls below UVLO. Though DD series products are designed for MHGP’s YCH-L and YCH-H series PPCs, they can also be used as a general purpose step-down DC/DC converter.



DD Series Features:

  • Input Voltage Range: 2.7V to 42V
  • Output Voltages: 0.8V to 41V
  • Up to 5A of Output Current
  • Efficiency up to 90%

DD Series Applications:

  • Power over Fiber (PoF)
  • Remote Sensors
  • Portable Products
  • Battery-Operated Devices

DD Series Datasheet Download

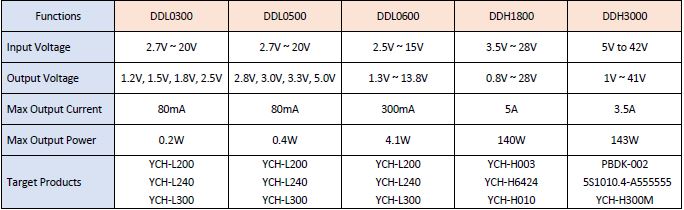

DDL0300     DDL0500     DDL0600     DDH1800     DDH3000
